Punch Shoulder Blanks DIN 9844 Type-A

Products

Punch Shoulder Blanks DIN 9844 Type-A

Product No.:DIN 9844 Type-A

  • Details

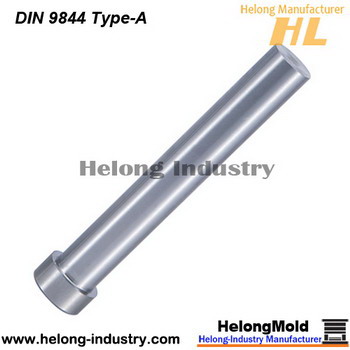

Punch Shoulder Blanks  DIN 9844 Type-A,  HSS-Polished Head
Shaft 64 ± 2  HRC
Head 52 ± 3 HRC

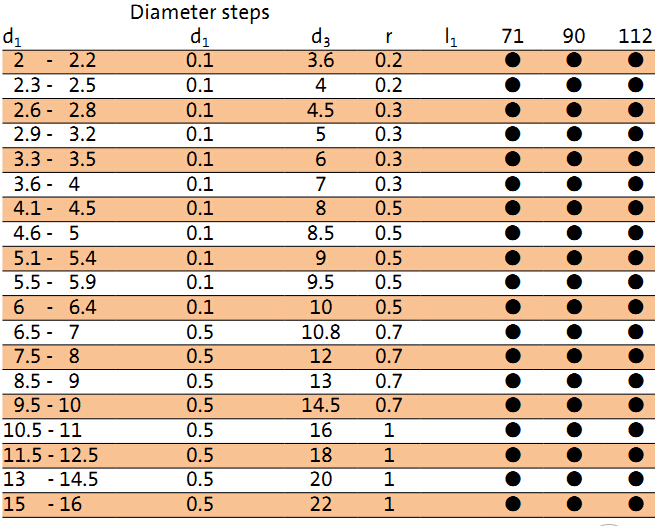

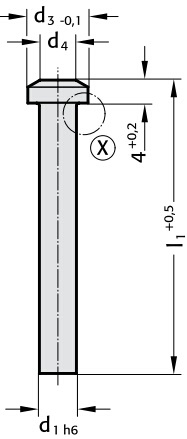

Punch DIN 9844, Shape A


Material

HRC 58-62: HWS(1.2516) /  SKD11 / A2 ;
HRC 62-64: HSS(1.3343) / SKH51  /  M2 ;
HRC 62-67: ASP23,  ASP30 ; Etc.

Coating:TiN
,TiCN ,TiAlN , Etc.

Delivery Time depended on the Material and the quantity, For HWS or similar usually 5 Days,
For HSS or similar material usually 7-8 Days.
Precision  Exactly to(+/-0.002),Good Finishing Surface.
Standard as DIN 9861 , ISO 8020,Misumi, Fibro,Dayton.Etc,  Customized drawing available too
